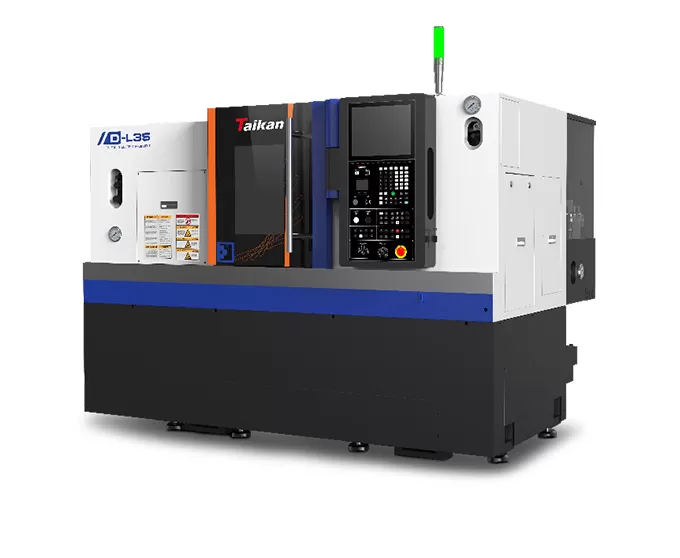

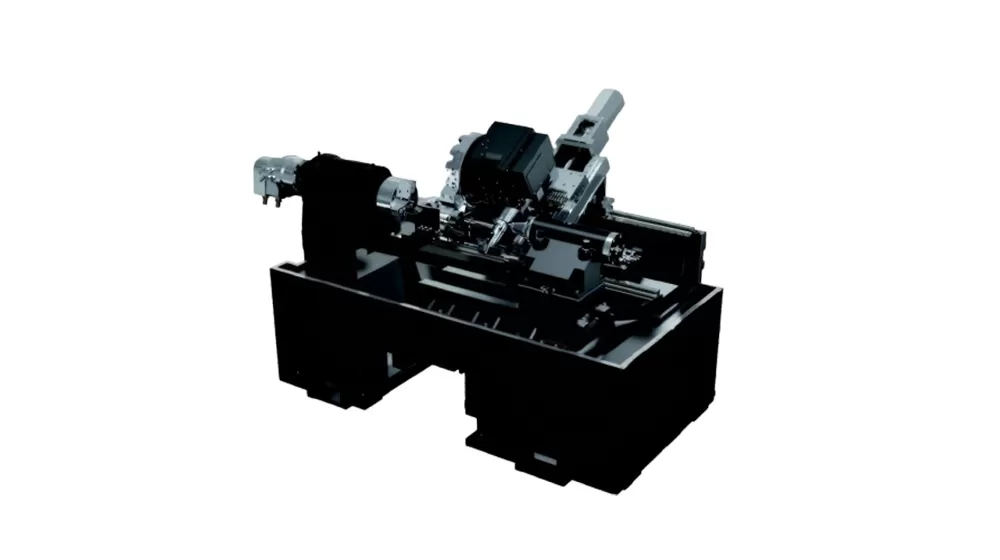

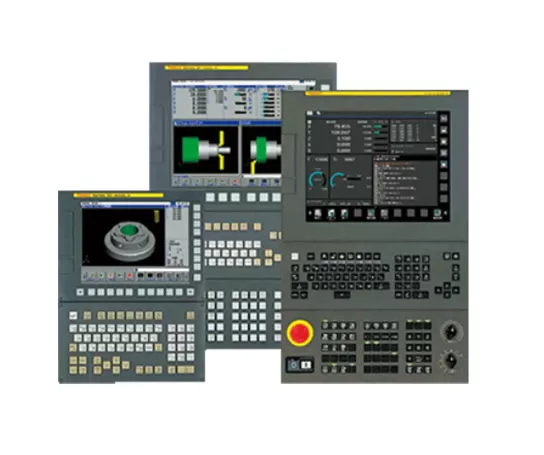

D-L35 CNC horizontal lathe - 翻译中...

Machining range

Maximum turning diameter on the bed

mm

φ500

Maximum machining diameter (spindle/disc)

mm

φ300/φ350

Maximum machining length

mm

560

Maximum bar stock diameter

mm

φ52

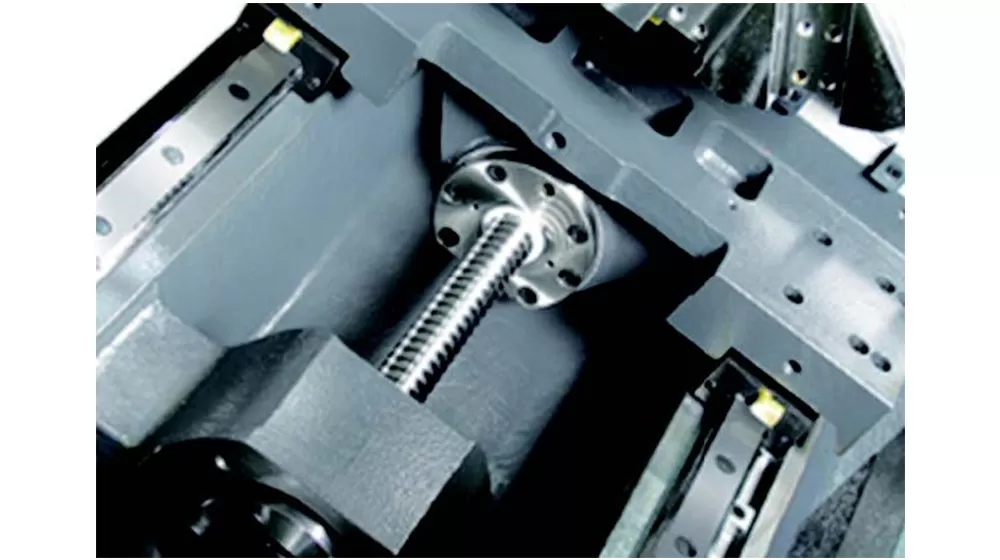

Travel

X-axis travel

mm

190

X-axis motor power/stall torque

kw/Nm

2.2/38

Z-axis travel

mm

580

Z-axis motor power/stall torque

kw/Nm

2.2/38

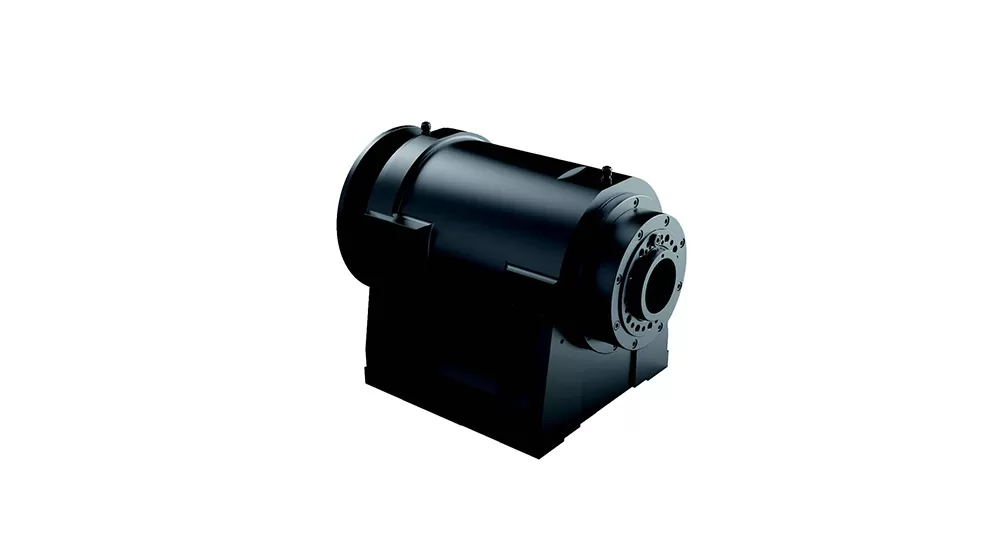

Spindle

Output power (S1/S6)

kw

11/22

Spindle end type

A2-6

Spindle speed

r/min

0-4000

Spindle bore diameter

mm

φ63

Rapid Speed

Rapid traverse speed (X axis)

m/min

30

Rapid traverse speed (Z axis)

m/min

30

Cutting feed speed

mm/min

1~8000

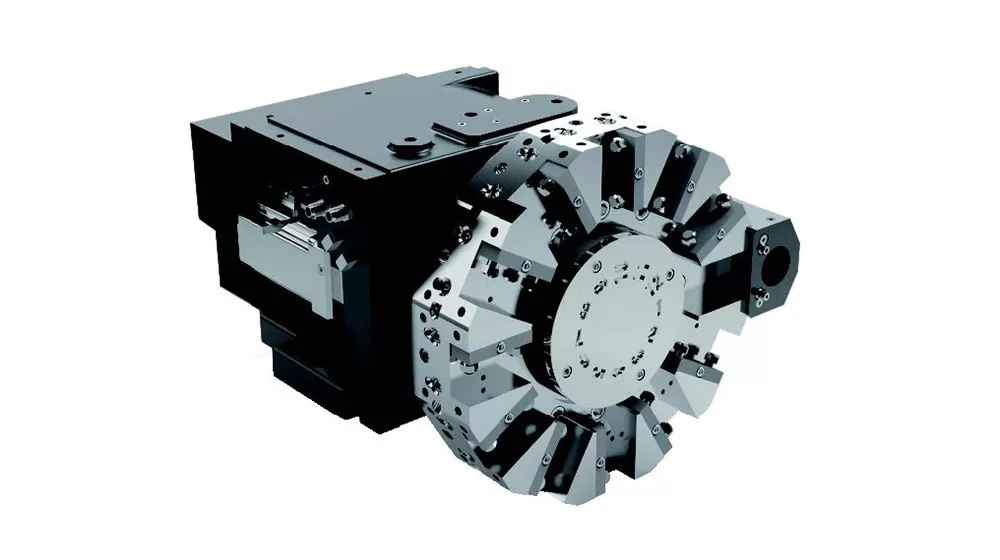

Tool

Tool capacity

T

12

Tool indexing time

Seconds/bit

0.5

Lather Tool body size

mm

25×25

Max. boring tool diameter

mm

40

Accuracy

Positioning accuracy (X axis)

mm

0.006

Positioning accuracy (Z axis)

mm

0.006

Repeatability (X axis)

mm

0.004

Repeatability (Z axis)

mm

0.004

Other

Power supply capacity

kVA

20

Fluoride coolant tank volume

L

150

Machine tool dimensions

mm

2430×1740×2030

Manual chip removal water tank

Machine tool net weight (approx.)

kg

3600
