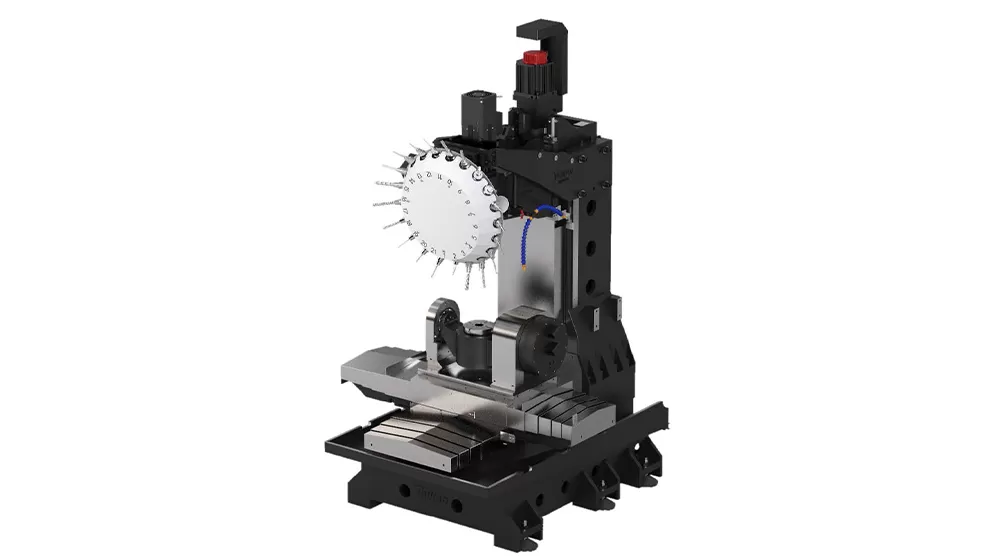

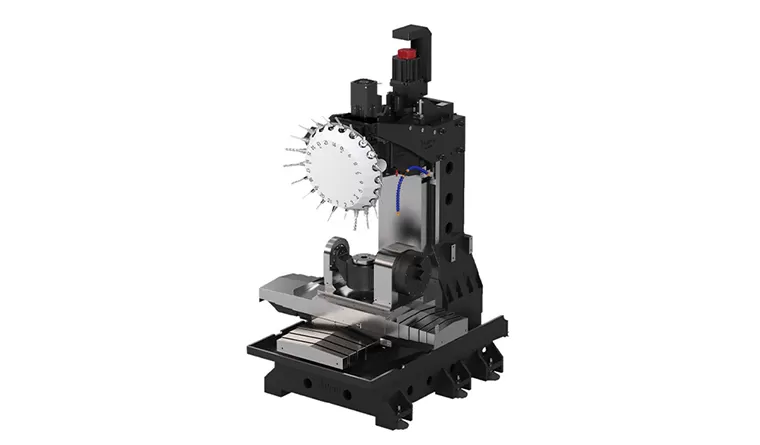

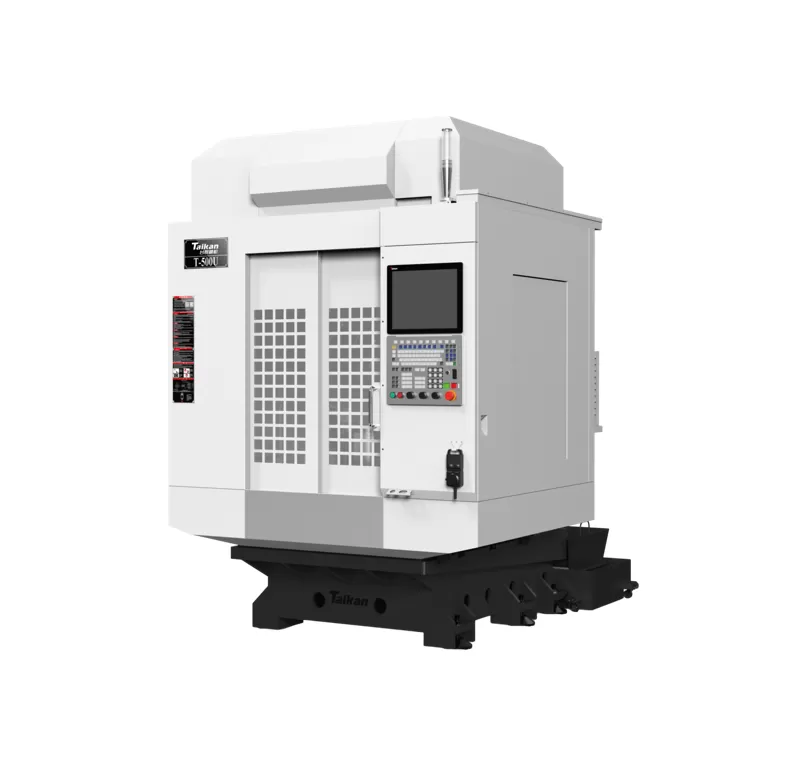

T-500U 5-axis simultaneous drilling and tapping machining center - 翻译中...

  Travel

  range

Table travel (X-axis)

mm

500

Saddle travel (Y-axis)

mm

400

Headstock travel (Z-axis)

mm

350

Distance from spindle nose to table surface

mm

60～410

Distance from spindle center to column guide rail mounting   surface

mm

474

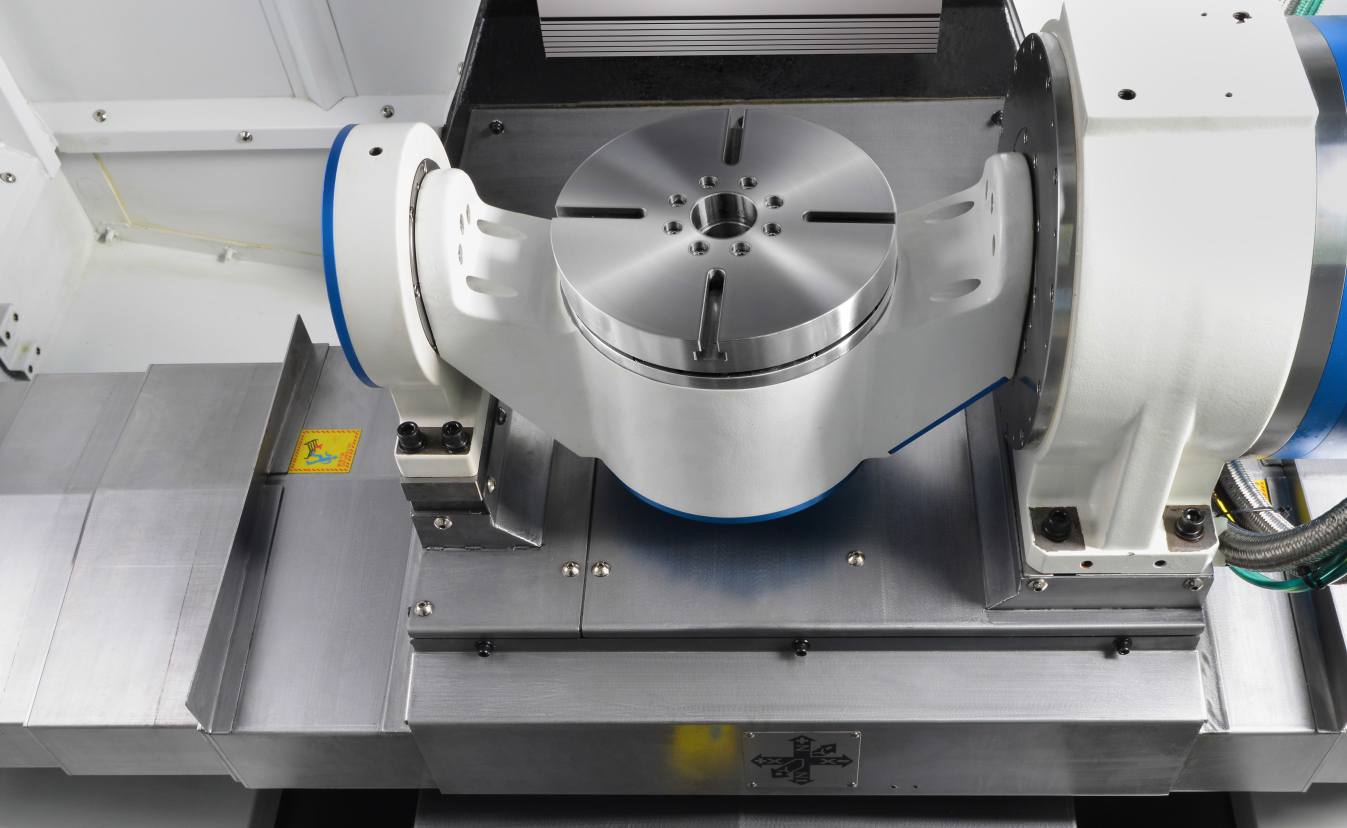

Rotary

Table

Drive type

/

Double Dd torque rotary table

Rotary table size

mm

Φ200

Max. machining diameter

mm

Φ350

Number of T-type worktables - width

mm

4*12

Rotary table load capacity

kg

Vertical   35 / Horizontal 45

Rated power (A/C)

kW

3.29/0.975

Tilting angle

°

±110

Max. speed (A/C)

rpm

250/250

Rated torque (A/C)

N.m

105/35.5

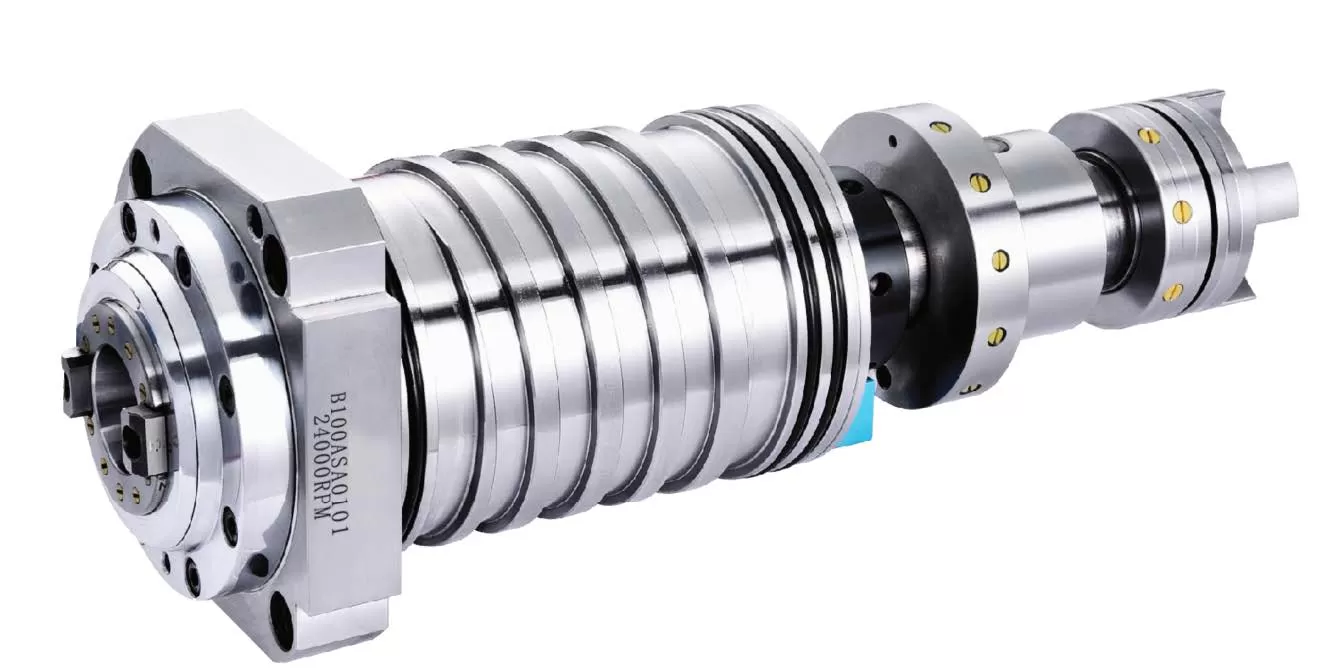

Spindle

Motor Power (Rated/Short-Time)

kW

3.7/5.5

Motor Torque (Rated/Short-Time)

N.m

11.6/17.4

Spindle Motor Speed

rpm

20-24000

Spindle Diameter

mm

Ф100

Spindle Taper

/

BT30

Speed

Cutting Feed Rate Range

mm/min

1-15000

X/Y/Z Axis Rapid Speed

m/min

48/48/48

  Accuracy

Positioning accuracy (X/Y/Z)

mm

0.006

GB/T18400.4

（Full travel）

Repeatability (X/Y/Z)

mm

0.004

Positioning accuracy (A/C)

arcsec

±10

Repeatability (A/C)

arcsec

5

     Tool magazine

Tool magazine capacity

T

21

Max. tool weight

kg

3

Max. tool length

mm

300

Max. diameter (full/adjacent empty tool)

mm

Ф60/Ф80

Others

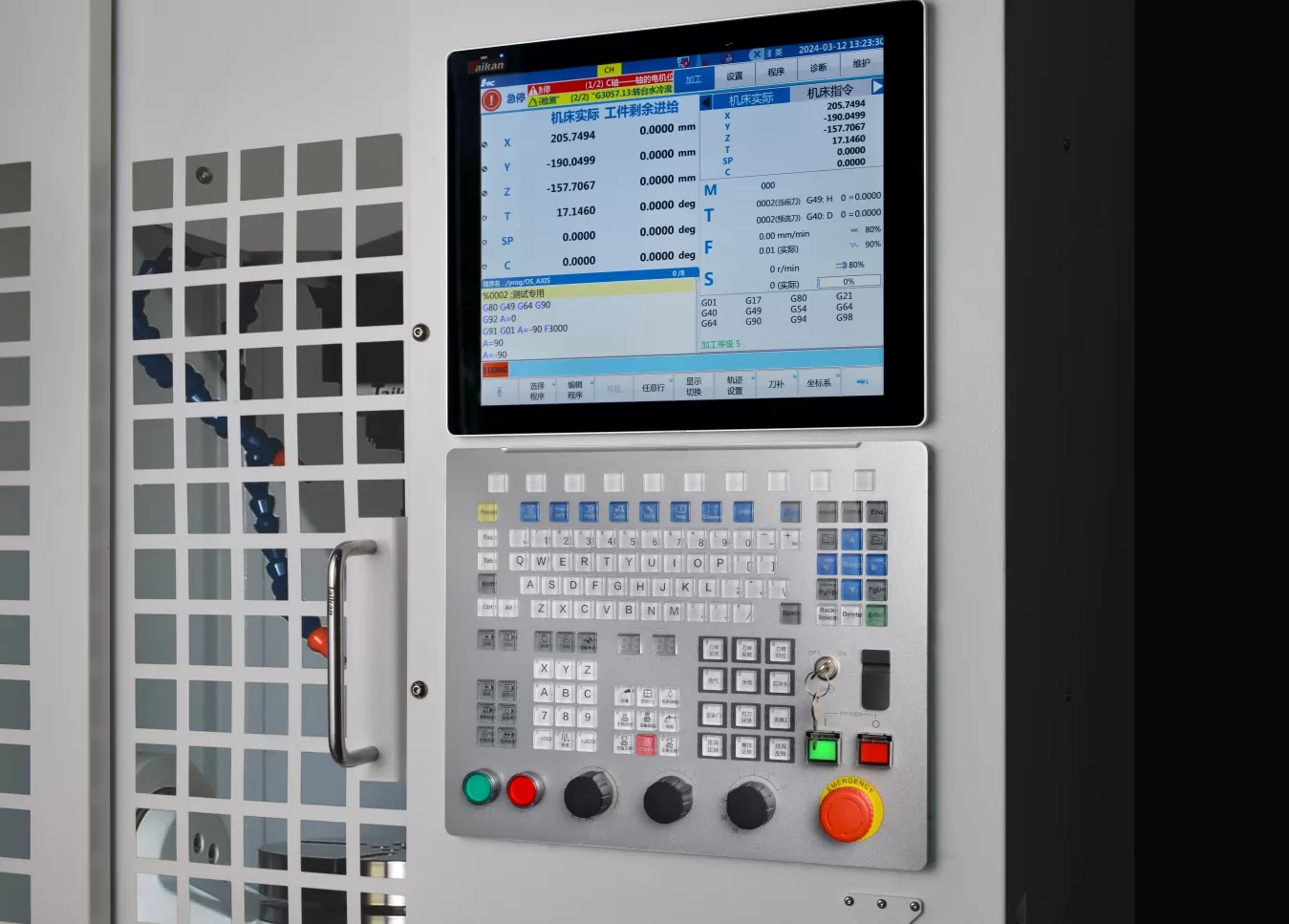

CNC system

Huazhong 848D System

Package B

Air source

Flow rate

L/min

≥200（ANR）

Air pressure

MPa

0.6-0.8

Equipment capacity

kVA

20

Max. coolant tank capacity

L

145

Machine dimensions

mm

1700*2420*2520

Corresponding   to the X*Y*Z axes

Main weight (approx.)

kg

3300
