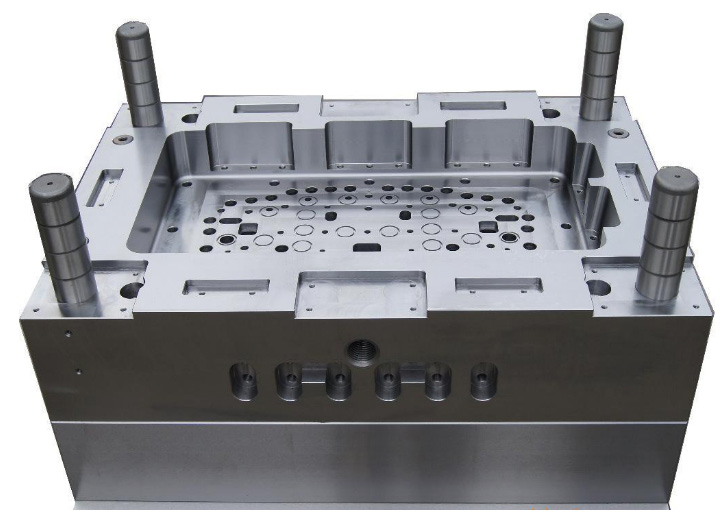

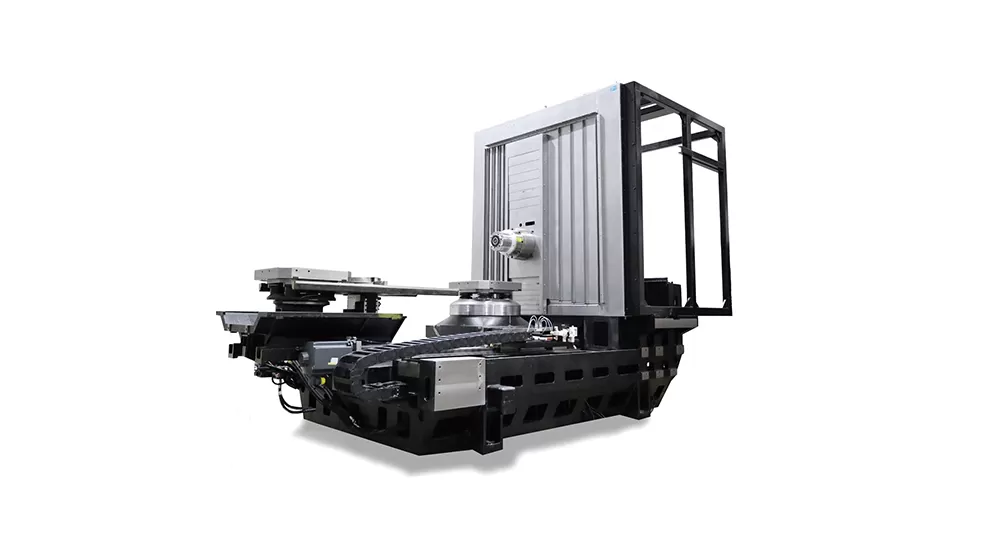

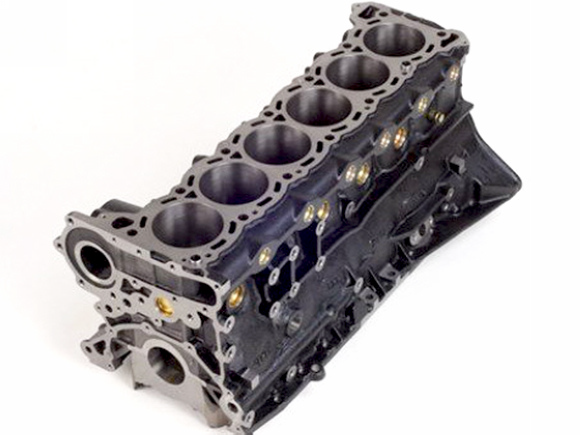

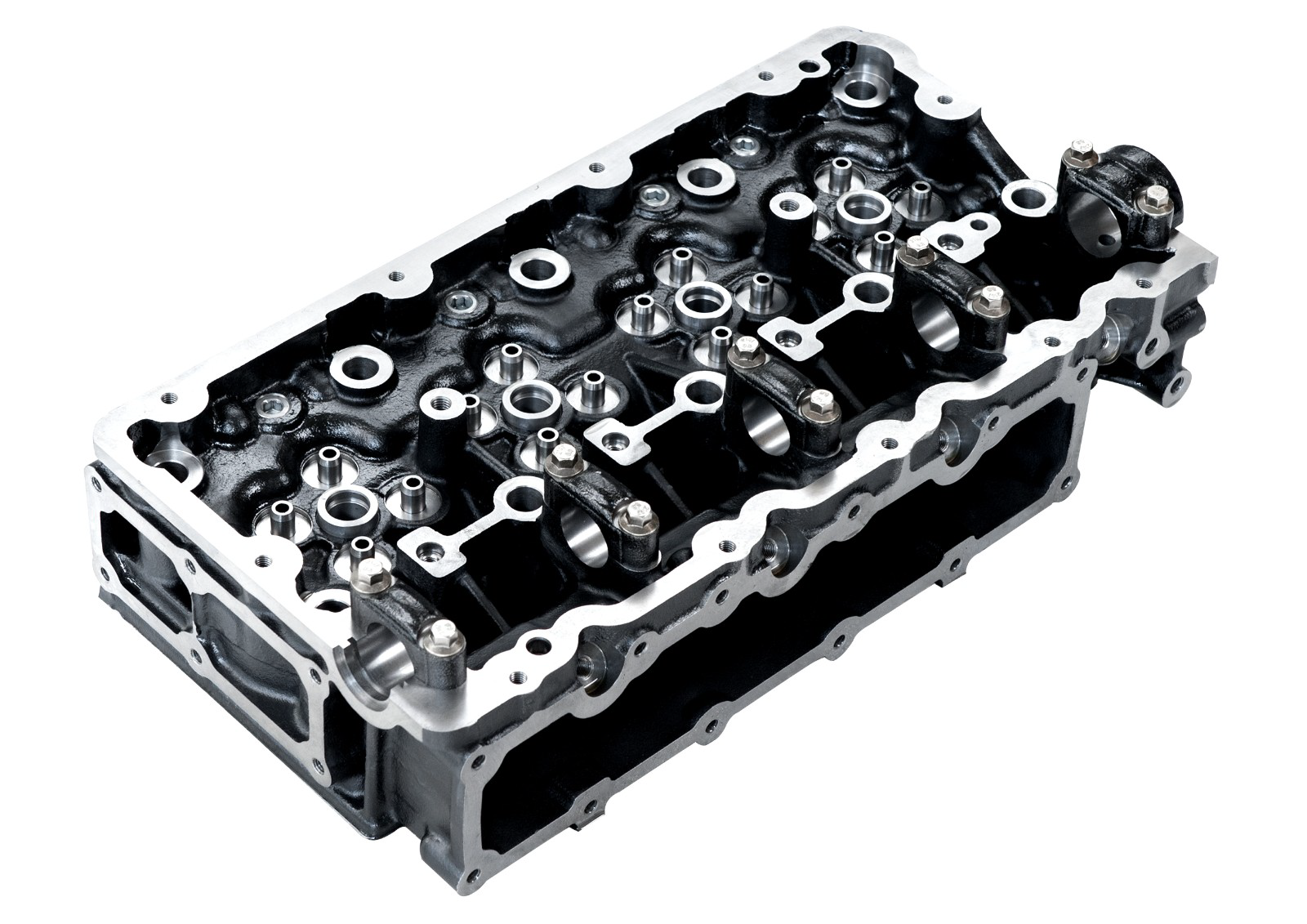

HQ5 High Rigidity Horizontal Machining Center - 翻译中...

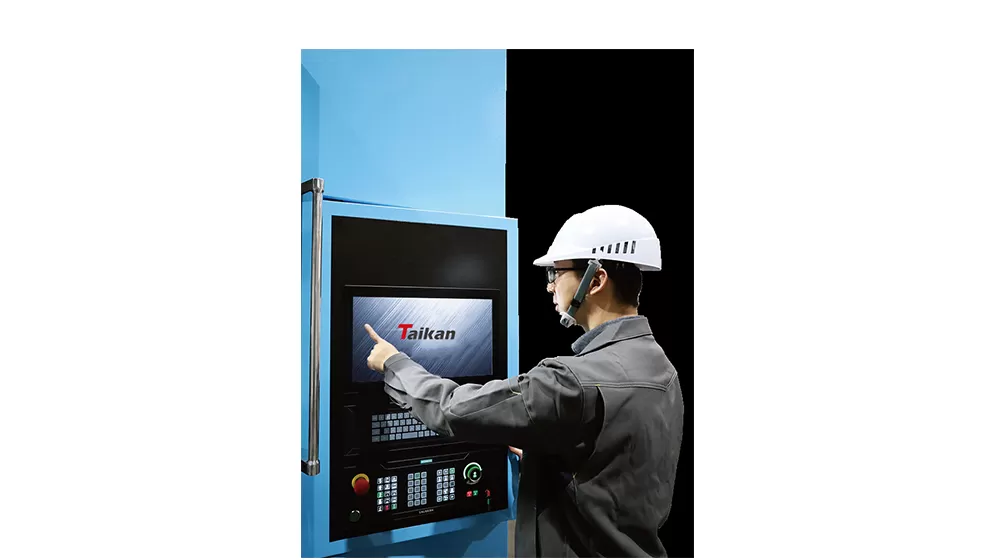

CNC System

Siemens 828D

Travel

X/Y/Z

mm

750/750/800

B   Axis

°

360

Distance   from Spindle End Face to Table Center

mm

150-950

Distance   from Spindle Center to Table Surface

mm

120-870

Max. Workpiece Size

mm

φ850×1000

Table

Table   Size

mm

500*500(2 pcs)

Table   Load Capacity

Kg

800

Spindle

Spindle   Power (S1/S6)

Kw

22/37

Spindle   Torque (S1/S6)

Nm

122/205

Max. Speed

r/min

15000

Tool   Holder Spec.

-

HSK-A63

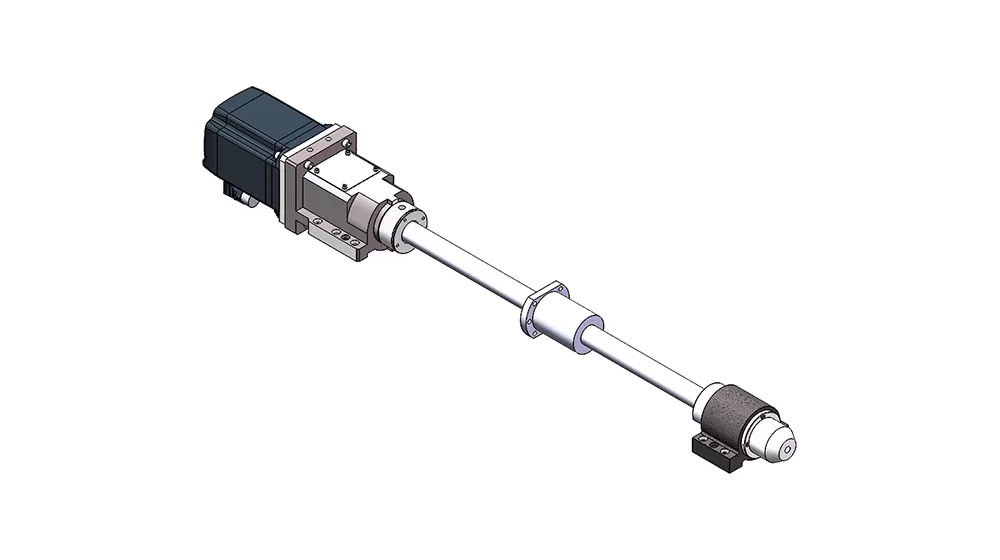

 Speed

X, Y, Z axis rapid speed

m/min

60/60/60

X, Y, Z axis cutting feed

mm/min

1~50,000

Accuracy

Positioning accuracy (X/Y/Z)

mm

0.01

0.006(Full Closed Loop)

VDI3441

Repeatability (X/Y/Z)

mm

0.006

0.004(Full Closed Loop)

VDI3441

Positioning   accuracy (B)

arcsec

8（(Full Closed Loop)

VDI3441

Repeatability   (B)

arcsec

6(Full Closed Loop)

VDI3441

Tool magazine

Tool   magazine capacity

T

40

Tool   length

mm

500

Tool   diameter (full/adjacent empty)

mm

80/150

Max. tool weight

Kg

12

Others

Total   electrical capacity

KVA

57

Machine   height

mm

3205

Machine   external sizes (length * width)

mm

6025×3985

Total   weight (approx.)

Kg

17,000
